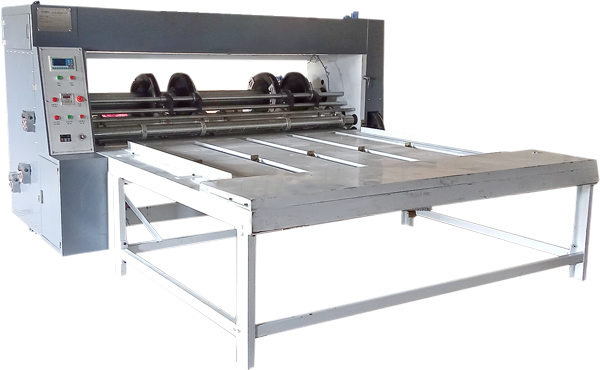

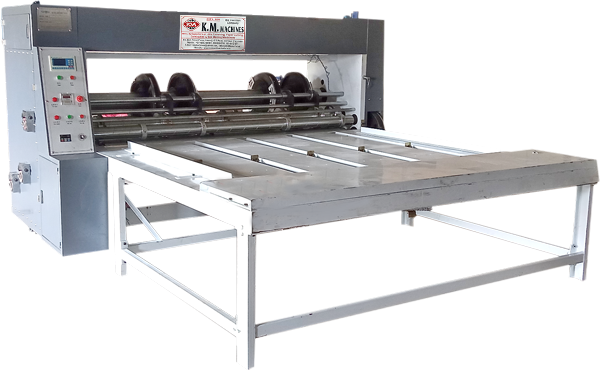

This machine has become a basic requirement for any packaging house in the past decade. This machine is basic requirement of corrugated box industry to slot/slit scoring after height creasing and slitting of board to make corrugated box
Our unique strengths for Combined Rotary Slotter Machine (Carton Box Making Machine):
| Model | 2200 x 1400 | 2400 x 1400 | 2600 x 1400 | 2800 x 1400 | 2600 x 1600 | 2800 x 1600 |
|
Roller diameter (mm) |
468 |
468 |
468 |
468 |
530 |
530 |
|
Max Feeding size (mm) |
1470 × 2200 |
1470 × 2400 |
1470 × 2600 |
1470 × 2800 |
1570 × 2600 |
1570 × 2800 |
|
Electrical power (KWH) |
3.0 |
3.0 |
3.0
|
4.0 |
4.0
|
5.5 |
|
Slotting width* depth (mm) |
7 |
7 |
7 |
7 |
7 |
7 |
|
Transmission mode |
Chain Type |
Chain Type |
Chain Type |
Chain Type |
Chain Type |
Chain Type |
|
Slot Accuracy (mm) |
+-1.5 |
+-1.5 |
+-1.5 |
+-1.5 |
+-1.5 |
+-1.5 |
|
Work speed (sheets/min) |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
